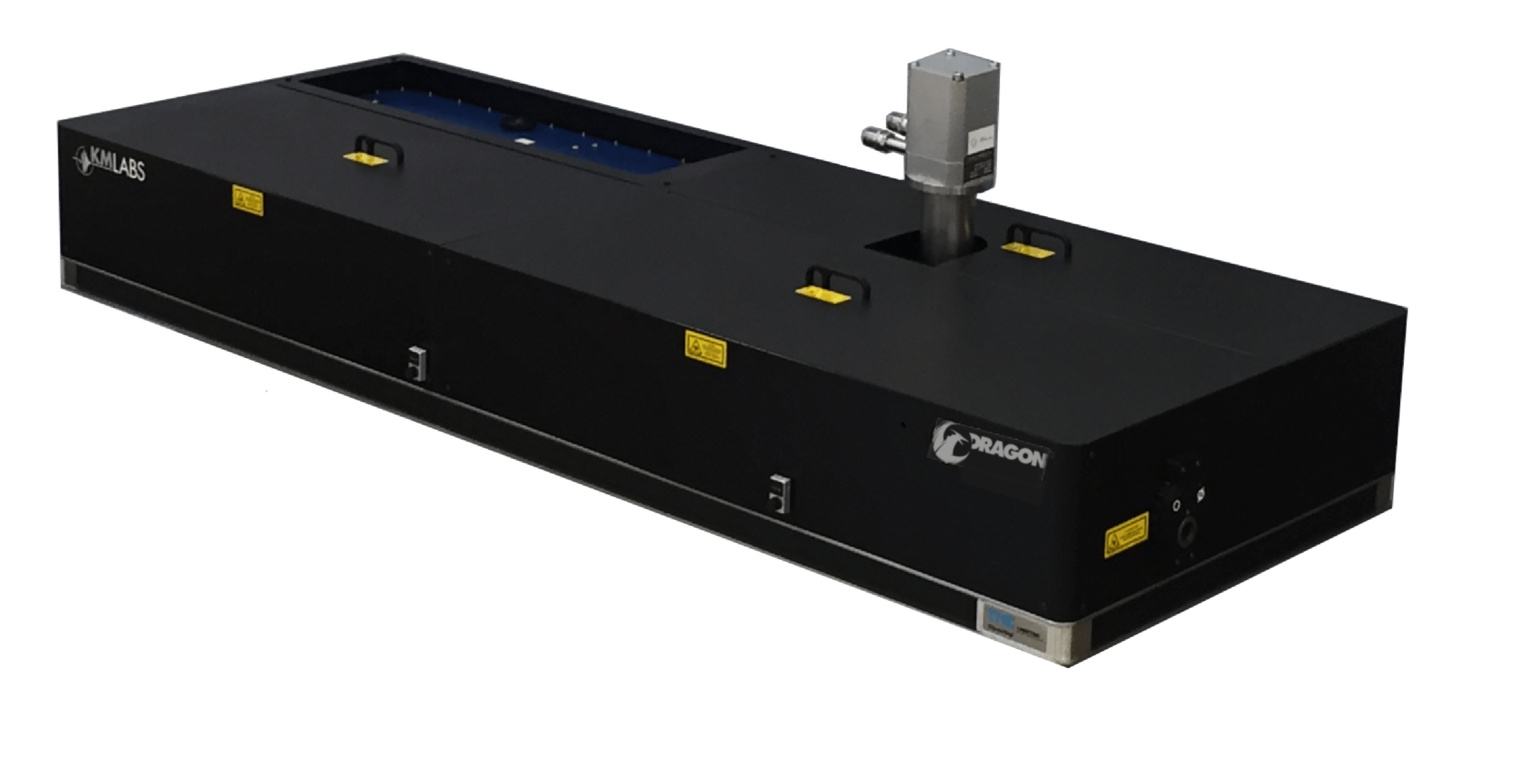

DragonTM D10 sub-25 fs Ti:sapphire Laser Amplifier

  • Real time adjustment from 5-10 kHz with no optical realignment
  • 1.3 mJ at 5 kHz repetition rate
  • 800 μJ at 10 kHz repetition rate

Applications:

  • High harmonic generation (HHG)
  • Attosecond studies
  • Pumping OPAs and HG units
  • Materials research
  • Femtochemistry
  • Spectroscopy
  • THz generation
  • Ultrafast Imaging
  • Pump probe experiment

Features:

  • Patented cryogenic cooling of the Ti:sapphire crystal in a single-stage amplifier is available exclusively through KMLabs.
  • Vacuum cryocell that protects the crystal using a sealed, internal ion pump that requires negligible user maintenance.
  • Comprehensive, fully integrated system diagnostics make Dragon a user-friendly amplification system, providing reference data for real time assistance with spatial, spectral and energy optimization.  Multiple cameras make alignment quick and simple.  Extensive data logs allow remote observation of system configuration for diagnostic assistance
  • Beam quality can be optimized in real time, ensuring highest efficiency OPA performance. Greater then 40% conversion to signal + idler has been demonstrated.
  • Dragon is shipped with the customer’s preferred pulse duration: sub-25 fs or sub-30 fs.
  • Comprehensive software control

Options:

Dragon – D3

Support Documentation
